100% SUS304 Stainless Steel body C/W
1.2mm thickness & food grade material
10 years warranty on bod
Model
1042
Vessel Size
10"x42"e4facb
Valve Size
3/4"
Diameter
10"
Overall Height
42"
Max. Working Presure
10 Bar
Max. Working Temperature
2 ~ 50.C
Flow Rate
1900 - 2200 LPM
ULTRA FILTRATION WATER SYSTEM
Model and Major Parametres
Product
MU117-1.5TPipeline Ultra-filtration Water System
Model
MU117-1.5T
Rated flow of purified water
1.5m3/h
Referenced total flow of purified water
500m3/h
Applicable water temperature
4-38。c
Applicable water
Tap water
Water quality of effluent water
Conforming to and partially superior the Sanitary Standard for Drinking Water(2001)
Packing size (mm)
670(L) X 195(W) X 205(H)
Net weight (kg)
5.4
Gross weight (kg)
6.2

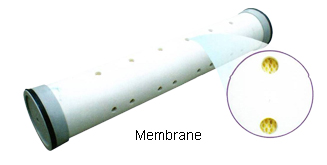

Using 0.01um ulta-filtration membrane (hollow fiber) separation technology, and able to effectively expel harmful substances in water such as sludge, rust, suspension, colloid, bacteria, virus and macromolecular organisms.
Stainless Steel Indoor Master Filter
ZEOLITE
GRANULAR ACTIVATED CARBON
To remove suspended solids soluble geavy metals & solube ammonium
Removes Chiorine
Bad taste Repulsive Smell Turbidity & Organic Matters
TC.2
Size: 10x 50 cm.
Capacity: 200 Litre/hrs.
The pufifier is made of stainless steel and consists of two strong and durable pipes.It is perfect to resist the water pressure. The filter uses activated carbon and zeolite, which is good for tap-water. Equipped with 3-litre/per pipe, it removes odor, color, chlorine, lime-stone and other hardness scales.
